¥78,681 JPY
| /
| Brand | TM SQUARE |
| Series Name | BONNET AIR OUTLET |
| Product Number | TMDF-A02601 |
| Compatible Car | SUZUKI SWIFT SPORT ZC33S |

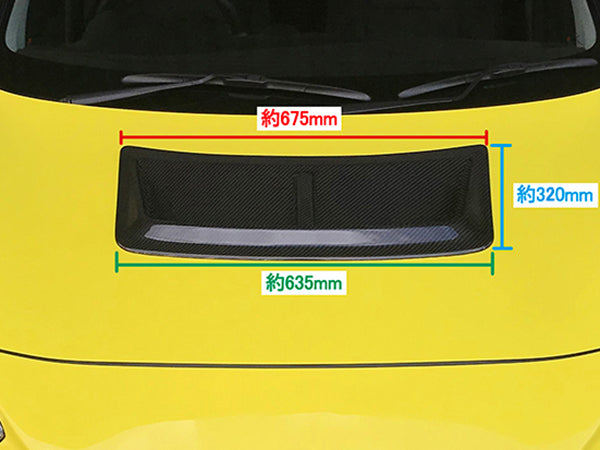

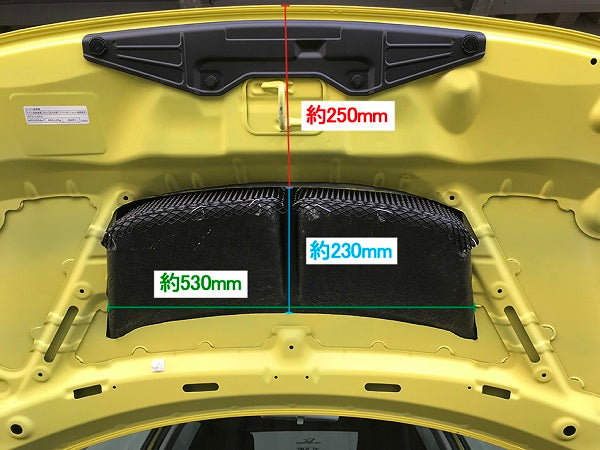

| Product Description | K14C engine boasts high power despite its compact size. The TM-SQUARE bonnet air outlet is a cooling part that efficiently removes the heat generated from this downsized TURBO from inside the engine room. Rather than molding the entire bonnet with carbon fiber, the genuine bonnet is modified and air outlet ducts are installed only in the necessary areas.Currently, the TCR category of racing cars is attracting a lot of attention worldwide. Adopts the same method as Carr. By adding significant cooling efficiency to the strength and dust protection that is unique to a genuine bonnet, we have achieved a high level of balance between cost, effectiveness, and visuals. When the TM-SQUARE Bonnet Air Outlet is installed, the product will protrude 75mm below the bonnet surface. There is no problem if the intake box etc. is a genuine product, but if you are using an aftermarket intake box etc., please make sure there is enough space in this area. When it rains, rainwater enters the engine compartment while the vehicle is stopped or while the vehicle is running. In our opinion, even with a genuine bonnet, if the vehicle is driven during rainy weather, a large amount of rainwater will enter the engine room through the gaps between the radiator fins and from below the body. In addition, waterproof couplers are used in each part, so from an indoor/outdoor perspective, the inside of the engine room is considered to be outdoors. Therefore, we do not take measures against rainwater, so if you are concerned about rainwater entering through the openings, we ask the user to take appropriate modifications/measures. |
| Remarks | *This product uses a UV-blocking gel coat.*It will be delivered unpainted (without clear coating).(We do not accept shipping of clear painted products)*Adhesive used for installation is not included.*It is necessary to relocate the stay holder (the hook used to fix the stay when opening the bonnet). |
| Notes | Images are for illustration purpose only. Actual product may vary. |
