¥175,067 JPY ¥233,200 JPY
| /
| Brand | HKS |

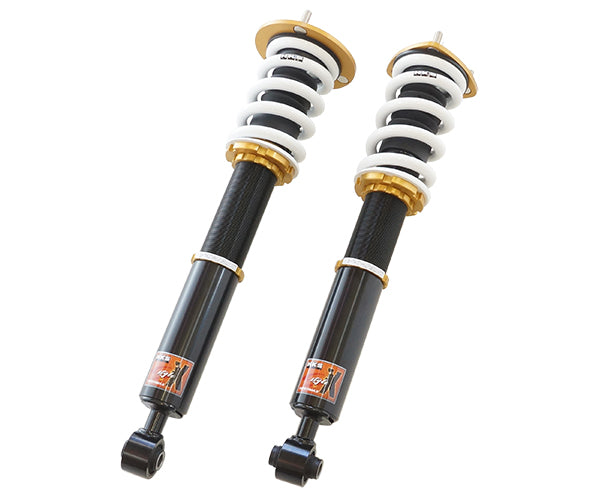

| Series Name | HIPERMAX S-STYLE X SERIES COILOVERS SUSPENSION TYPE |
| Product Number | 80120-AT206 |
| Compatible Car | TOYOTA CROWN GRS210 |
| Compatible Engine | 4GR-FSE |
| Product Description | Year Mode: 12/12-18/06 FULL KIT SETTING SPRING RATE F/R N/MM (KGF/MM): F=175(18)/R=157(16) FREE LENGTH F/R MM: 150/170 DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N F: STRETCH SIDE/SHRINK SIDE: 1846/940 DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N R: RETENTION SIDE/RETRACTION SIDE: 1775/814 VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) FRONT: -46 (0 - -117) VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) REAR: -82 (0 - -148) |
| Remarks | Vehicle height data is from GRS214 test. If installed as shipped, the height of the lower edge of the fog will be less than 250mm. When using on public roads, please be sure to adjust the fog lower edge height to at least 250mm. Can only be shipped with UPS or FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
