¥175,067 JPY ¥233,200 JPY
| /
| Brand | HKS |

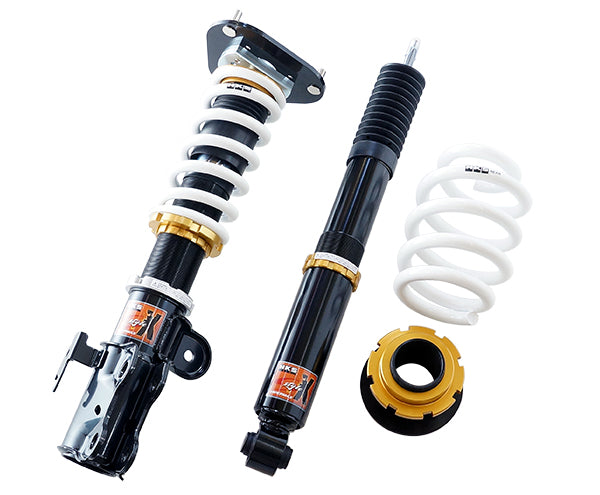

| Series Name | HIPERMAX S-STYLE X SERIES COILOVERS SUSPENSION TYPE |
| Product Number | 80120-AT210 |

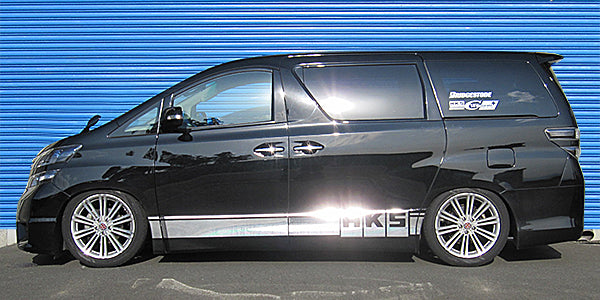

| Compatible Car | TOYOTA VELLFIRE GGH20W |
| Compatible Engine | 2GR-FE |
| Product Description | Year Mode: 08/05-15/01 FULL KIT SETTING SPRING RATE F/R N/MM (KGF/MM): F=78(8)/R=100(10.2) FREE LENGTH F/R MM: 200/SPECIAL DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N F: STRETCH SIDE/SHRINK SIDE: 1163/472 DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N R: RETENTION SIDE/RETRACTION SIDE: 1150/340 VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) FRONT: -67(-42 - -124) VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) REAR: -69(-57 - -112) |
| Remarks | 2WD, separate rear shape, compatible with 2011/11MC models. Vehicle height data is for GGH20W (3.5L). Can only be shipped with UPS or FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
