¥205,622 JPY ¥273,900 JPY
| /
| Brand | HKS |

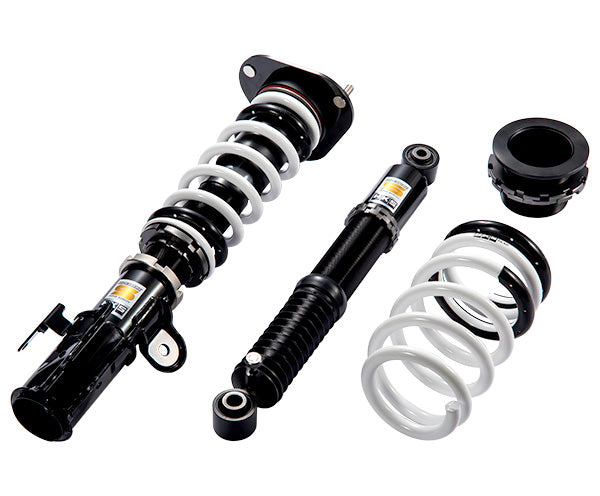

| Series Name | HIPERMAX S SERIES COILOVERS SUSPENSION TYPE |
| Product Number | 80300-AT210 |
| Compatible Car | TOYOTA ALPHARD GGH30W |
| Compatible Engine | 2GR-FKS |
| Product Description | Year Mode: 18/01-23/05 FULL KIT SETTING SPRING RATE F/R N/MM (KGF/MM): F=69(7)/R=89(9) FREE LENGTH F/R MM: 250(BARREL)/SPECIAL DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N F: STRETCH SIDE/SHRINK SIDE: 610/300 DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N R: RETENTION SIDE/RETRACTION SIDE: 490/270 VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) FRONT: -37(0 - -67) VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) REAR: -43(-11 - -69) |
| Remarks | Confirmed with 2.5 ZG edition, '18/01 minor change car. Not compatible with vehicles equipped with side lift-up seats. Vehicle height data is for AGH30W (late model). Can only be shipped with UPS or FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
