¥129,212 JPY ¥167,200 JPY
| /
| Brand | CUSCO |
| Series Name | 2 INCH LIFT KIT COILOVER SUSPENSION KIT |
| Product Number | 60V 6JS U20 |
| Compatible Car | SUZUKI JIMNY NOMAD JC74W |
| Compatible Engine | |

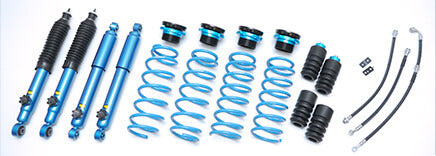

| Product Description | Vehicle height adjustment range: +50 to +75 mm Kit contents: 4 shock absorbers, 4 springs, 4 screw spacers, 4 large-capacity bumper rubbers (soft specification) *Hard specification available as an option. Long brake hoses (3 for JB23W, 4 for JB64W), ABS harness/locking hub hose relocation kit included . Spring Rate FR 2.4 / FL 2.3 / RR 2.5 / RL 2.3 kgf/mm |
| Remarks | *If the JB64W, JB74W, or JC74W is raised by 2 inches or more, the front propeller shaft will interfere with the factory cross member, requiring the installation of an aftermarket lowering bracket (sold separately) or a cross member with a relief shape (sold separately). *If the JB64W (XC grade, etc.) or JB74W grade with headlight auto-leveling is raised by 2 inches or more, the following additional parts are required. Be sure to use these together to prevent damage to the factory sensor. Auto leveler adjustment rod for 2 inch lift (00B-628-PT) If you want to lift by 2.5 inches or more, please use the auto leveler adjustment rod for 3 inch lift (00B-628-PU). |
| Notes | Images are for illustration purpose only. Actual product may vary. |
