¥70,933 JPY ¥71,390 JPY
| /
| Brand | GTCP |
| Series Name | OIL COOLER KIT |
| Product Number | 16600-2031-000 |
| Compatible Car | DAIHATSU HIJET TRUCK JUMBO S500P S510P TOYOTA PIXIS TRUCK S500U S510U SUBARU SAMBAR S500J S510J |

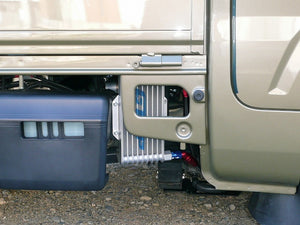

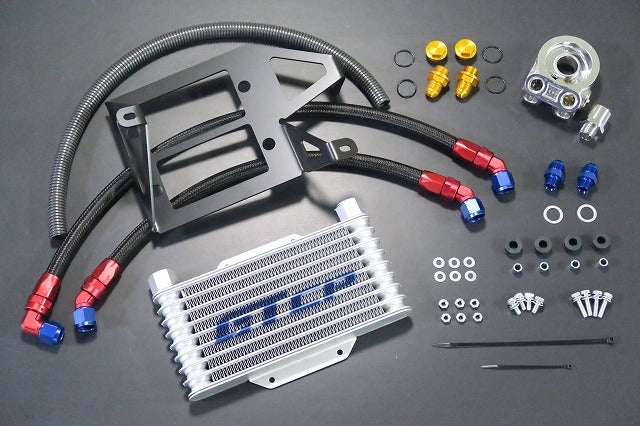

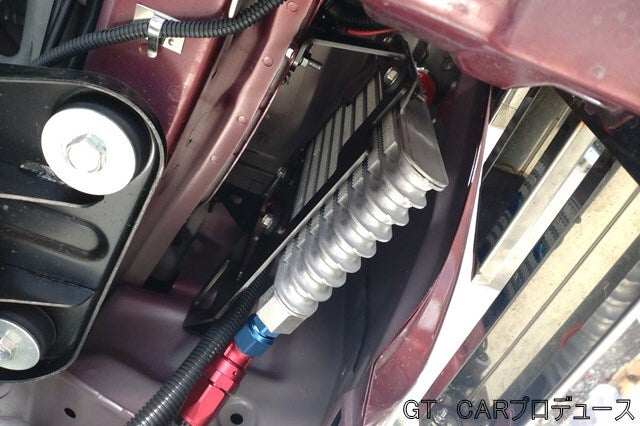

| Product Description | This is a full oil cooler kit that can be installed with bolts. It comes with a thermostat so it won't overcool even in the winter when the outside temperature is low. The hose joint uses a fitting system, so there is no need to worry about it coming off while driving, unlike hose band fastenings. The hose is made of highly flexible nylon mesh with a stainless steel mesh built into the middle layer, which provides the same reliability as conventional stainless steel mesh hoses while also being flexible and lightweight. The core is installed under the right cargo area, in front of the battery. If you are installing an oil temperature/oil pressure gauge, please add the separately sold "Oil Temperature/Oil Pressure Sensor Adapter (M18-PT1/8)" to your cart at the same time when ordering. Up to two can be installed. Cooler Core Material: Aluminium Core size (mm): 195×122×32 Heat dissipation amount: 4600kcal/h Hose Material: Nylon mesh hose (surface nylon + middle layer stainless mesh + NBR rubber hose) Thermostat operating temperature : Starts operation at 75°C, fully opens at 82±2°C |
| Remarks | *Can also be installed on new vehicles (late model) with minor changes from December 2021 (Reiwa 3). Note: For some Type 3 vehicles (November 2017 to November 2011), it may be necessary to drill a φ8 hole in the bracket mounting area. It can also be installed on the Hijet Jumbo (S500P/S510P) and Grand Cab (S500J/S510J). |
| Notes | Images are for illustration purpose only. Actual product may vary. |
