¥234,914 JPY ¥272,800 JPY
| /
| Brand | HKS |
| Series Name | INTERCOOLER KIT |
| Product Number | 13001-AT011 |
| Compatible Car | TOYOTA GR YARIS GXPA16 KOUKI |
| Compatible Engine | G16E-GTS |

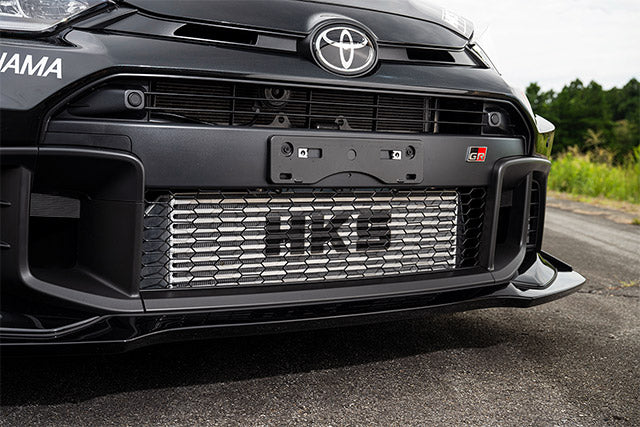

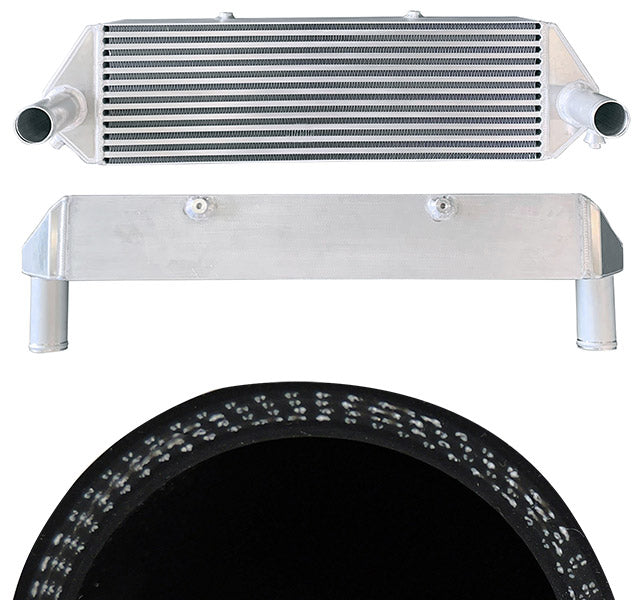

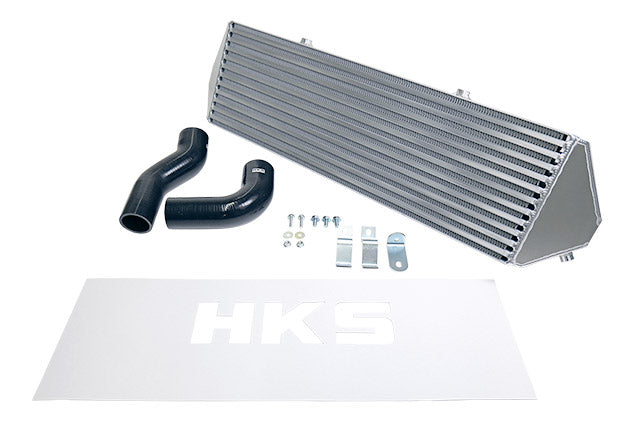

| Product Description | ■Features:A new intercooler kit has been set up exclusively for GR Yaris Gen2DAT vehicles. Although it is a genuine replacement type, stable cooling performance is ensured by increasing the height and thickness. By optimizing the fin shape, the cooling performance is maintained, while the air volume passing through is also secured, which reduces the impact on the water temperature, which is a concern. In order to cope with the high output, the tank inlet and outlet have been changed from the original φ45 to φ50. By adding layers from the original 1 PLY hose to the 4 PLY hose, it improves durability and prevents damage and hose loss. The included HKS logo spray pattern can also contribute to the dressing up of the vehicle. Type: Laminated type Core Size/mm/Mounting Position : L645×W205×H105 ■Genuine product - Core Size : L645×W145×H80(mm), Core Specification: 10 Fins, 9 Tubes, Inlet Tank: Aluminum, Outlet Tank: Resin, Hose: 1PLY ■HKS - Core Size : L645×W205×H105(mm), Core Specification: 12 Fins, 11 Tubes, Inlet Tank: Aluminum Outlet Tank: Aluminum, Hose: 4PLY Vehicle Compatibility : Vehicle Type: GR Yaris, Model : GXPA16, Engine : G16E-GTS, Year : 24/04 - |
| Remarks | ・GR-DAT (8AT) exclusive product ・Cooling package and manufacturer options Can be installed on vehicles equipped with subradiators ・When using intercooler water spray, a separately sold water spray bracket (13999-AT001) is required ・HKS Piping Kit (13002- AT001 and AT002) cannot be used in conjunction with |
| Notes | Images are for illustration purpose only. Actual product may vary. |
