¥102,301 JPY ¥118,800 JPY
| /
| Brand | HKS |
| Series Name | POWER EDITOR R |
| Product Number | 42018-AF004 |
| Compatible Car | SUBARU WRX S4 VBH LEVORG VNH |
| Compatible Engine | FA24(TURBO) |

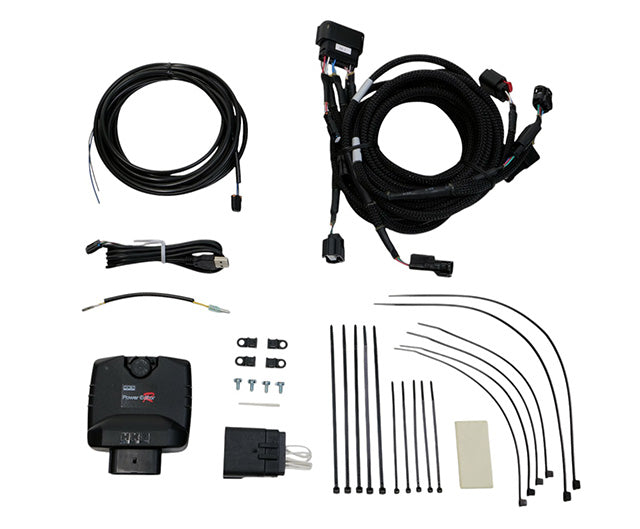

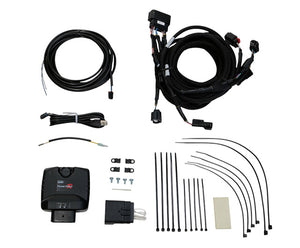

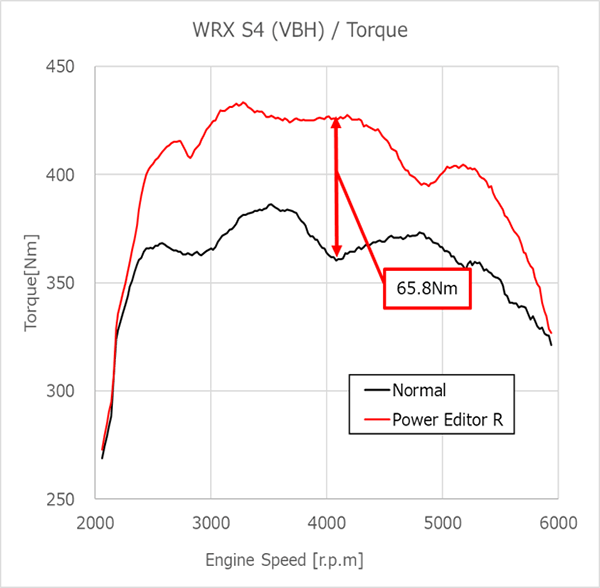

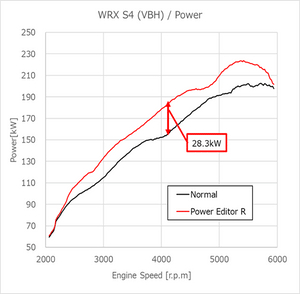

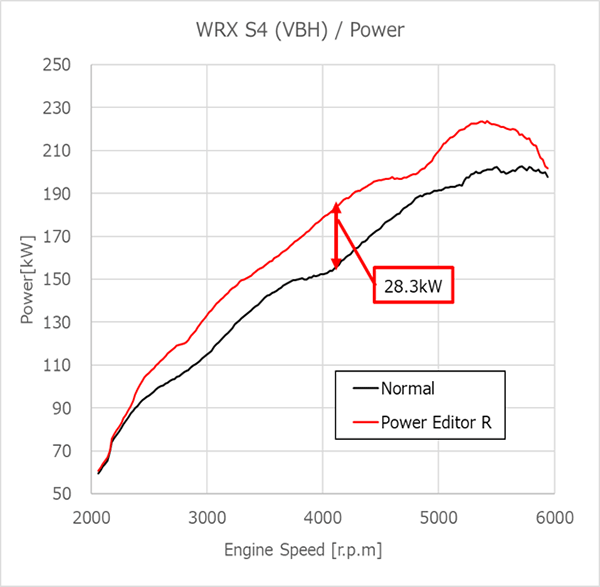

| Product Description | "Power Editor R" realizes a greater boost and power increase with coupler on. Product Series Features It can be easily boosted by interrupting and connecting to the vehicle's sensor harness. The connecting harness is exclusive to the car model, so it can be easily installed with a coupler-on. While many boost-up products use a rotation signal for control, the Power Editor R allows you to use speed signals and throttle signals in addition to rotation signals. It is possible to control the optimal correction value for each vehicle speed and throttle opening. The "Power Editor R" body of this kit has preset boost updater data. By interrupting the vehicle's sensor harness, you can easily boost it. By using Easy Writer for Power Editor R (free of charge), you can create custom data that is your own, so you can make detailed settings according to individual differences in vehicles. Product features by vehicle type We are pleased to announce the release of the "Power Editor R" model kit as a new boost-up menu for the "WRX S4 (VBH)" and "LEVORG (VNH)". Since it uses more signals to control the game than the easy "Power Editor", the power torque is increased throughout the entire area, so you can enjoy turbo power. The "Power Editor R" main unit has preset boost updater data. Even after installing this product (after wiring), you can restore it to its normal state by using the return connector included with the Power Editor R main body. This product is interrupted to the following sensor harness of the vehicle and connected to each channel of the "Power Editor R". CH1: Boost pressure sensor / CH2: Throttle signal (input only) CH5: Airflow sensor Cam angle sensor (rotation signal) / Vehicle speed signal (optionally connected) Since it is finely controlled by signals from many sensors, the power and torque are greatly increased over the entire range. You can enjoy the easy-to-handle and powerful characteristics that bring out the potential of the FA24 engine. By installing the "Power Editor R", the power torque will be greatly increased in the entire range. In particular, the power torque in the mid-rpm range has been greatly increased, so you can experience sharp and powerful acceleration when you step on the accelerator when accelerating when merging or going uphill. Compatible Vehicle : SUBARU WRX S4 VBH LEVORG VNH Year : 21/11- |
| Remarks | The boost pressure in the stock meter will be misaligned in the area where the boost pressure is corrected by Power Editor R. When using vehicle speed compensation, it is recommended to use VAC II (45009-AF001) in conjunction with VAC II (45009-AF001), which makes it easier to remove the vehicle speed signal line. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
