¥187,552 JPY ¥217,800 JPY
| /
| Brand | HKS |
| Series Name | SUPERFIRE RACING COIL PRO |
| Product Number | 43005-AZ001 |
| Compatible Car | MAZDA RX-7 FD3S |
| Compatible Engine | 13B-REW |

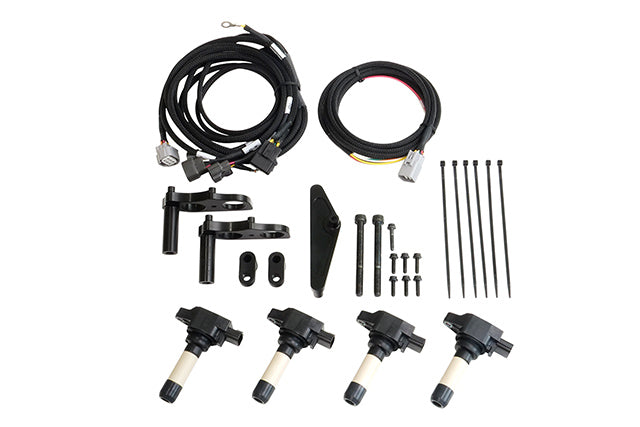

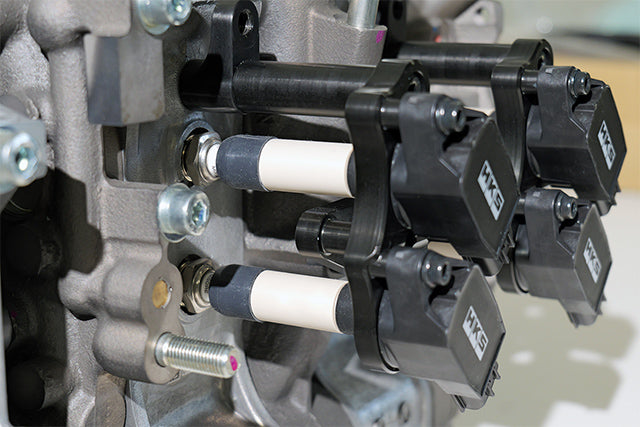

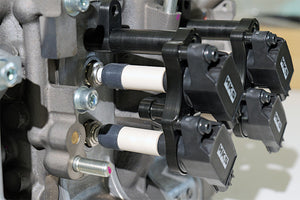

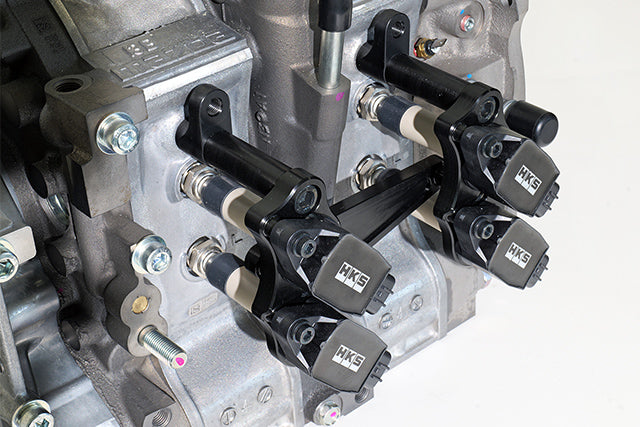

| Product Description | Domestic ignition coil with high durability and high performance. While coping with the unique structure and vibration of rotary engines, it achieves reliable ignition even in the high rpm range, and realizes a reliable power increase. ■Features : This is a reinforced ignition coil kit designed specifically for the RX-7 (FD3S). The FD3S has the unique feel of a rotary turbo and can be enjoyed for sports driving, but the genuine ignition system may deteriorate over time and may be prone to misfires at high rpm.This kit uses a domestically made ignition coil. It supports your car with high durability and high performance of modern standards. The original simultaneous ignition system has been changed to an independent ignition system to ensure reliable ignition. In addition to preventing misfires under high loads, it is also effective in engine startability and stability at idle. The kit can be easily installed with a specially designed bracket harness. The ignition coil mounting position is further away from the heat source than the original mounting position. It is designed to extend the service life even in harsh operating environments.The bracket that holds the coil was designed through trial and error to cope with the vibration unique to rotary engines. Vibration tests are conducted by a third-party organization to confirm safety. The brackets themselves are also anodized and aesthetically pleasing. The coil power supply is supplied from the battery through a relay. It provides stable support for powerful ignition. By optimizing the dwell time, reliable ignition is achieved and the combustion condition is improved. In fact, in the installation test of this kit, the exhaust gas was cleaned and fuel efficiency was improved. Vehicle compatibility Vehicle type : RX-7, Model : FD3S, Engine : 13B-REW, Year: 91/10 -03/04 |
| Remarks | An ECU that can be changed to an independent ignition setting, such as "F-CON V Pro", is required. It does not work with the genuine ECU. Wiring work is required to connect the ECU to this kit. In order to efficiently demonstrate the performance of this product, we recommend using the "HKS Super Fire Racing Plug" with excellent wear resistance. Please control ECU settings such as duel time appropriately at a specialized shop. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
