¥32,206 JPY ¥37,400 JPY
| /
| Brand | HKS |
| Series Name | CAN SMART METER TYPE OBDII |
| Product Number | 44009-AK004 |

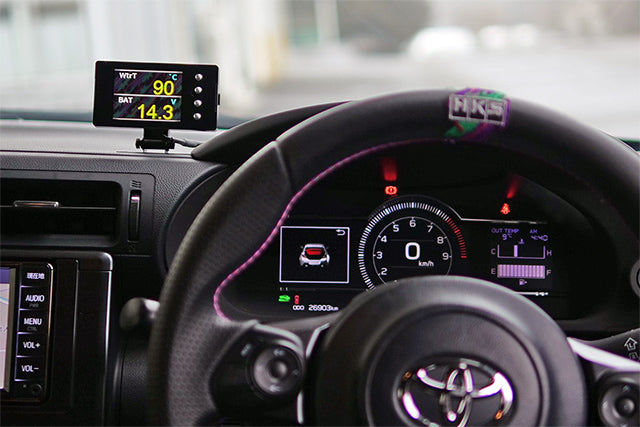

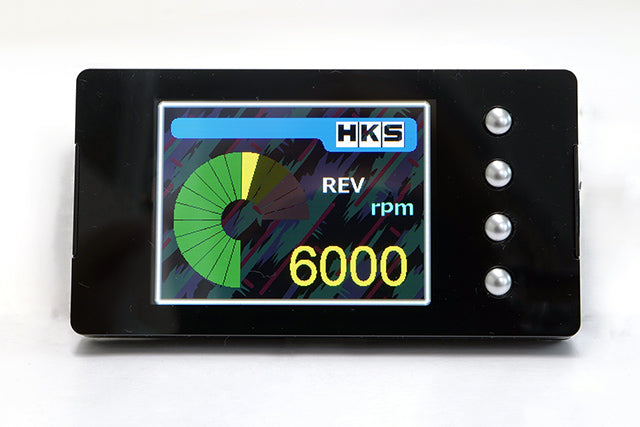

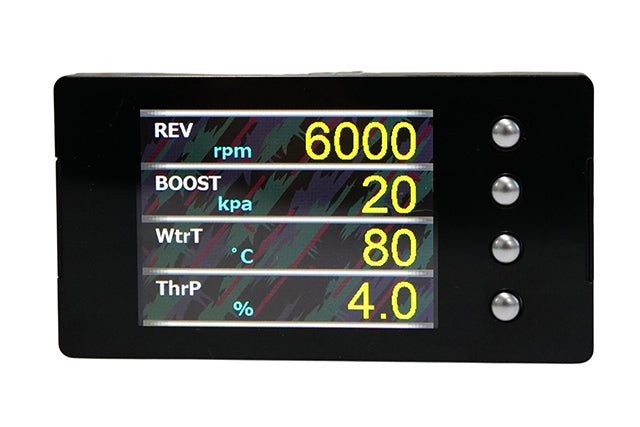

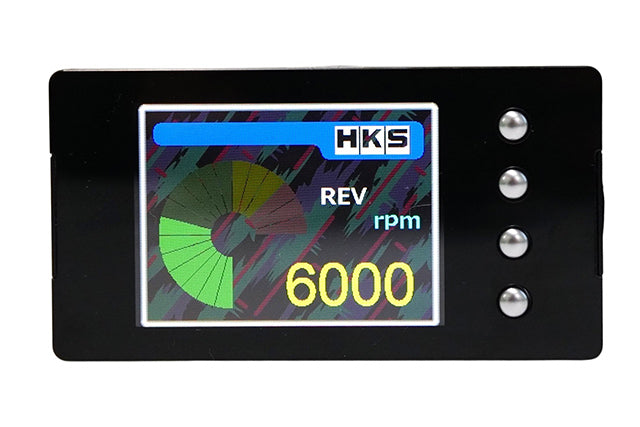

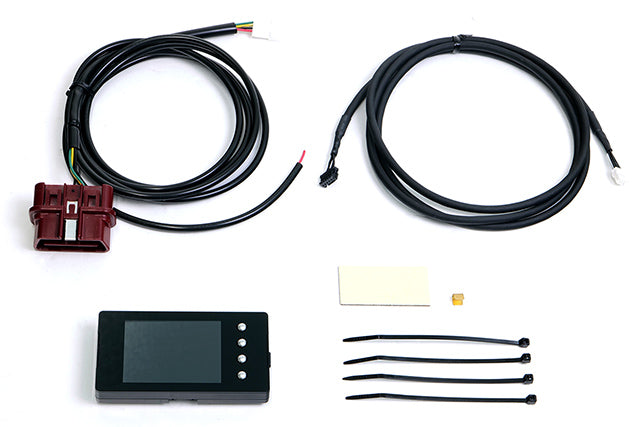

| Product Description | Using "CAN communication", vehicle information that must be confirmed in the tuning car can be displayed in an all-in-one manner. The dedicated display with excellent visibility allows you to instantly grasp the ever-changing vehicle conditions during sports driving. Product Overview : This product is a multimeter that reads information from the CAN communication system in the vehicle, converts it into meter values, and displays it on a display. The connection is only one connector and the power supply, so it can be easily attached. The display uses a 2.4-inch IPS LCD with high visibility, which has a proven track record in "Flash Editor" and other products. There are also four modes for the meter display that emphasize ease of viewing, so you can choose according to your preference. The display body is compact. Easy to install even in limited spaces. Using the Windows software "EasyWriter" dedicated to this product, it is possible to change the communication format and display items. You can use it free of charge. Series Features : By using CAN communication, it is easy to check more accurate values for data such as water temperature and intake air temperature. It is possible to protect the vehicle during sport driving and to see changes in the intake temperature when changing intakes. Example (1): The water thermometer can only display approximate values on the stock model, but you can grasp the exact values and make it possible to circle efficiently in sports driving. Example (2): By checking the intake air temperature in real time, the effects of replacing and insulating heat around the intake can be visibly grasped. You can see the opening of the accelerator throttle in real time. In addition to checking while driving, it is also possible to check with the on-board camera image by taking advantage of the high visibility. Since it is a small size enclosure that can be installed anywhere, it can be installed in the most suitable place to match the car, such as on the dashboard or instrument panel. It is also less likely to obstruct the view of sports driving. Conformity confirmation is carried out using actual vehicles, so you can use it with confidence. Four display modes can be switched with a button. It is possible to make the display easy to read according to the situation. type OBDII : The OBDII connector and the main body can be connected with a coupler-on connection with a special harness for easy installation. The default setting value of CAN communication complies with the "ISO-CAN" communication specification. The communication setting value can be changed using the dedicated software "EasyWriter", so it can be used for a wide range of vehicles. CAN communication setting tool "EasyWriter" : This is a dedicated software that allows you to set up CAN communication on a computer. It is possible to change the communication format and display items according to the vehicle. The CSM can be easily connected to a computer using a commercially available USB communication cable. Please download the software from the "Software Download" section on the right. |
| Remarks | ISO-CAN compliant vehicles *When using polarized sunglasses, the visibility of the screen may be reduced depending on conditions such as the type of lens, compatibility, and viewing angle. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
