¥42,625 JPY ¥49,500 JPY
| /
| Brand | HKS |
| Series Name | PRESSURE SENSOR KIT |
| Product Number | 45999-AT001 |
| Compatible Car | TOYOTA 86 ZN6 GR86 ZN8 SUBARU BRZ ZC6 ZD8 |
| Compatible Engine | FA20 FA24 |

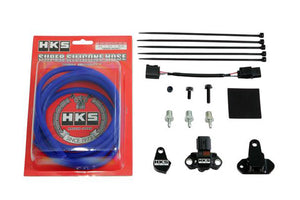

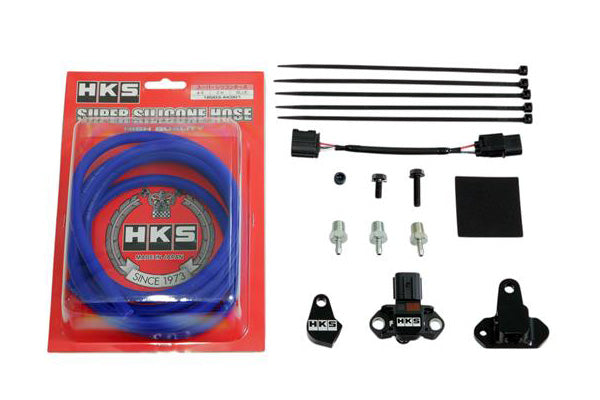

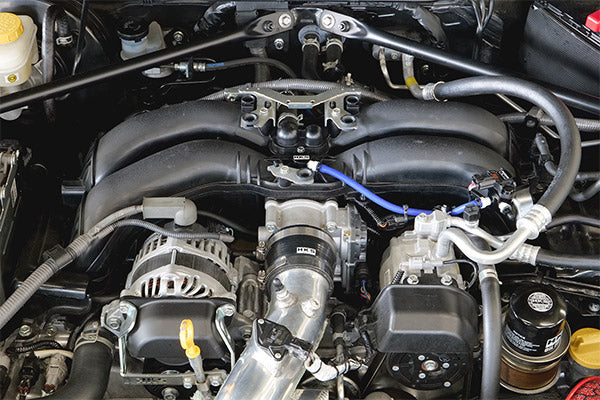

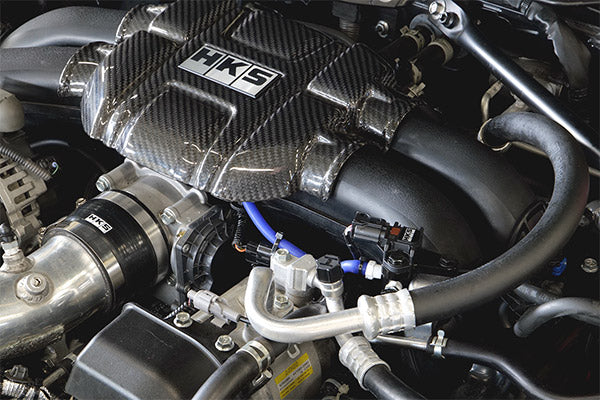

| Product Description | A pressure sensor with a "super wide range specification" that eliminates the lack of range of pressure sensors due to the installation of superchargers on FA20/FA24 engines. The FA20 and FA24 engines used in the 86/BRZ/GR86 (Z#6 and Z#8) are originally naturally aspirated, so the genuine pressure sensor saturates the positive pressure measurement at an early stage. Therefore, if you install a bolt-on turbo or supercharger, you will run out of range. The pressure sensor in this kit provides accurate recognition up to a maximum value of 294 kPa (3 kg/cm2). The sensor is made in Japan. It is durable and high-performance. It can be installed well by a special bracket and a special harness. We have an outlet for the boost meter, making it easy to connect additional meters. The genuine engine cover and HKS "DRY CARBON ENGINE COVER (70026-AT008/AT013) can be installed without processing, so it can be installed beautifully. Parts List HKS pressure sensor, Sensor harness, Sensor adapter 1, Sensor adapter 2, Hose nipple Φ4 PT 1/8 , Blind bolt PT1/8 , Hexagonal bolt with washer (M6×25, M6×15 ), Heat-resistant tie wrap , Sponge sheet, Silicone hose, Large diameter washer M6, Instruction manual Compatible Vehicle: TOYOTA 86 ZN6 (Year 12/04-21/10) GR86 ZN8 (Year 21/10-) SUBARU BRZ ZC6 (Year 12/03-21/07) ZD8 ( Year 21/08- ) |
| Remarks | When using this product, it is mandatory to change the setting of the ECU pressure characteristic parameters. Example: Flash Editor(br>Pressure Sensor (Pressure Offset): -150⇒-570 Pressure Sensor (Voltage Slope): 250⇒727.5 The ECU setting information is listed in the instruction manual, so please change it according to the instructions. In the case of the FA20 black type intake manifold, the intake manifold needs to be processed when installing this product. The FA20 red type intake manifold and FA24 can be installed without processing. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
