¥76,835 JPY ¥77,330 JPY
| /
| Brand | IMPULSE |
| Series Name | FRONT LARGE DIAMETER BRAKE KIT 262Φ WITH ROTOR |
| Product Number | IMPULSE-242A |
| Compatible Car | TOYOTA AE86 |

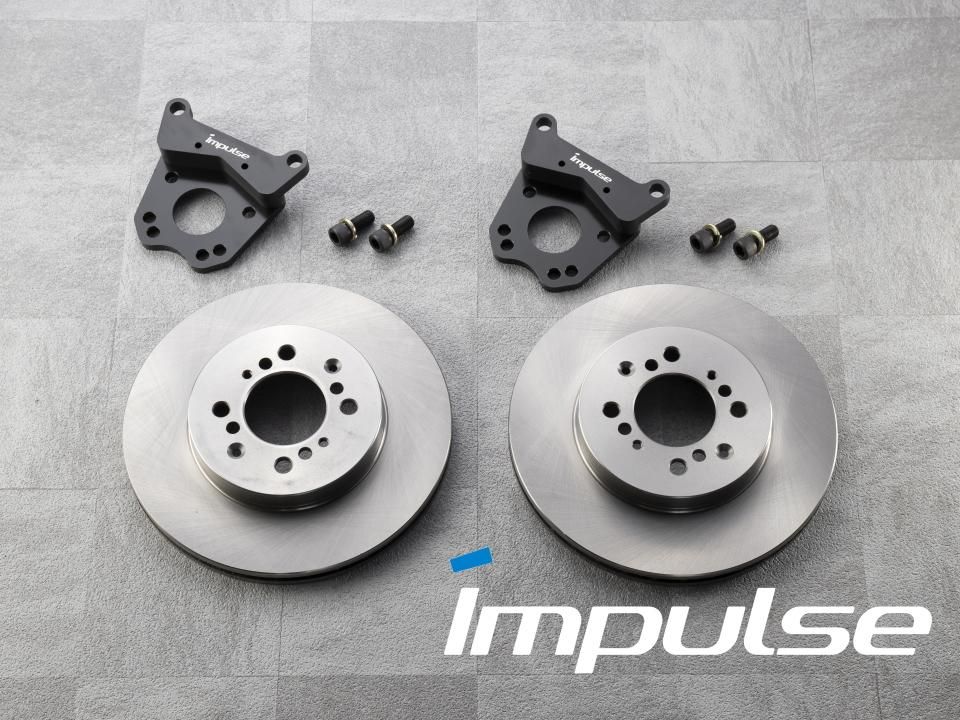

| Product Description | Product Description - AE86 Front Reinforced Brake Kit with Large Diameter 262Φ Rotors [Specifications] The AE86 stock calipers have been increased in diameter (233Φ-18mm) to (262Φ-21mm), and Toyota calipers with the same caliper piston size as the AE86 are used. The pad area is also the same size. [Purpose] This brake kit increases brake capacity and is designed for rebuilding and restoration. [Features] 3D designed and CNC machined . [Manufacturer/Brand] Impulse Machining [Kit Components] - Steel brake brackets (left and right) - Anti-rust plated (genuine: approx. 7.6mm thick, our kit: 9.0mm thick) - Aluminum brackets (with positioning knock pins) - Anti-rust anodized(A7075 high-strength aluminum/ultra-super duralumin) - Assembly bolts |
| Remarks | (Items to be prepared separately) - Brake calipers (left and right) - Brake hoses (left and right ) [Optional (additional fee applies)] - Used brake calipers (left and right) and rebuilt overhaul (No warranty as these are used items) - Stainless steel mesh brake hoses (RUNMAX) - Hose clamps (strut fixing clamps) - Disc pads (Seidoya: SP for city driving < SM400 for mountain passes < RM550, RM551+ for circuit use), etc. [Detailed Specifications] Caliper compatible part number (RH 47730-52020, LH 47750-52020) Vehicle model: Toyota Vitz (For NCP10, 13-RS *Not compatible with standard vehicles bB (NCP3# series) Fun Cargo (NCP2# series), and others (Platz, Ist, WILL, Probox, etc.) [Disc Rotor] Vehicle: Honda Civic EG6/EK4 Requires 4H-PCD drilling and hub backside radius relief (rotor hub hole chamfering). |
| Notes | Images are for illustration purpose only. Actual product may vary. |
