¥113,753 JPY
| /
| Brand | LARGUS |

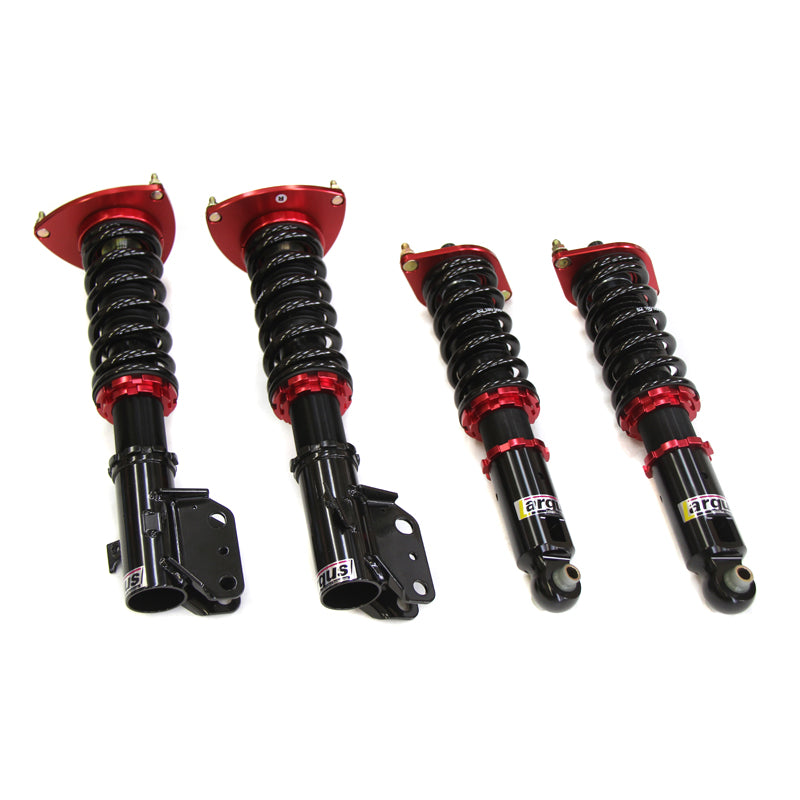

| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011202017-QQ-1 |
| Compatible Car | SUBARU IMPREZA SPORT HYBRID GPE 4WD |

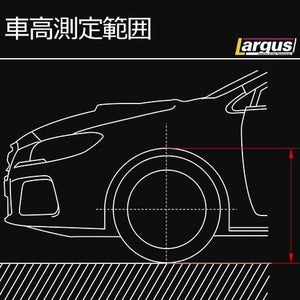

| Product Description | Car Manufacturer: Subaru Vehicle: Impreza Sport Hybrid Vehicle Model: GPE Year: 2015/07-2016/10 Drive System: 4WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 9kg Spring Rate R: 6kg Free Length F: 200mm Free Length R: 180mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Fixed Reinforced Rubber F Damping Position: Fixed with Dial (Upper Mount) F Damping Position R: Fixed with Dial (Upper Mount) Vehicle Height Adjustment Range F (Reference Value): 625mm-702mm Vehicle Height Adjustment Range R (Reference Value): 627mm to 706mm Down amount F (reference value): -82mm to -5mm Down amount R (reference value): -75mm to +4mm |
| Remarks | When adjusting the vehicle height, you must first loosen the bolts and nuts under the shock absorber. Because the damping dial interferes with the service hole panel, you will need to remove or partially cut the damping dial. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. Individual vehicle differences and assembly conditions may result in discrepancies. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other solution will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
