¥119,060 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011208009-QQ-1 |
| Compatible Car | SUZUKI SWIFT ZC83S 2WD |

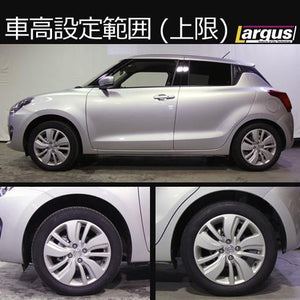

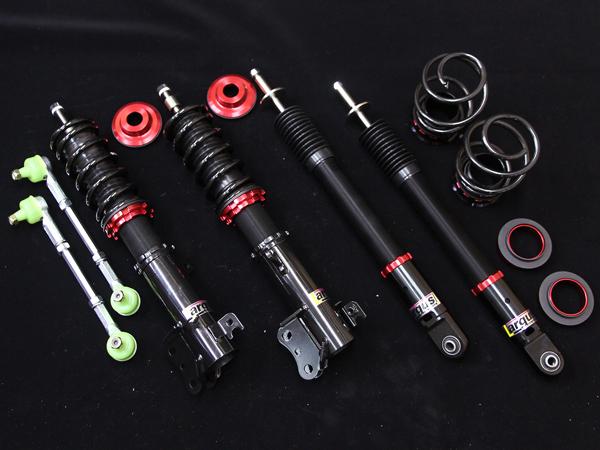

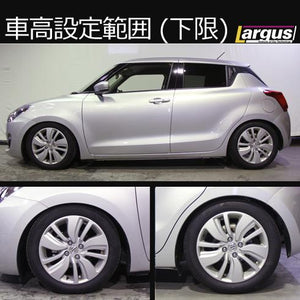

| Product Description | Car Manufacturer: Suzuki Vehicle Model: Swift Vehicle Model: ZC83S Year: - Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 5kg Spring Rate R: 3kg Free Length F: 170mm Free Length R: 135mm Upper Mount F: Mountless Upper Mount R: Mountless Damping Position F: Fixed by Dial (Upper Mount) Damping Position R: Fixed by Dial (Upper Mount) Vehicle Height Adjustment Range F (Reference Value): 591mm - 673mm Vehicle Height Adjustment Range R (Reference Value): 617mm - 666mm Lowering Amount F (Reference Value): -75mm to +7mm Down amount R (reference value): -56mm to -7mm |
| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
