¥113,753 JPY
| /
| Brand | LARGUS |

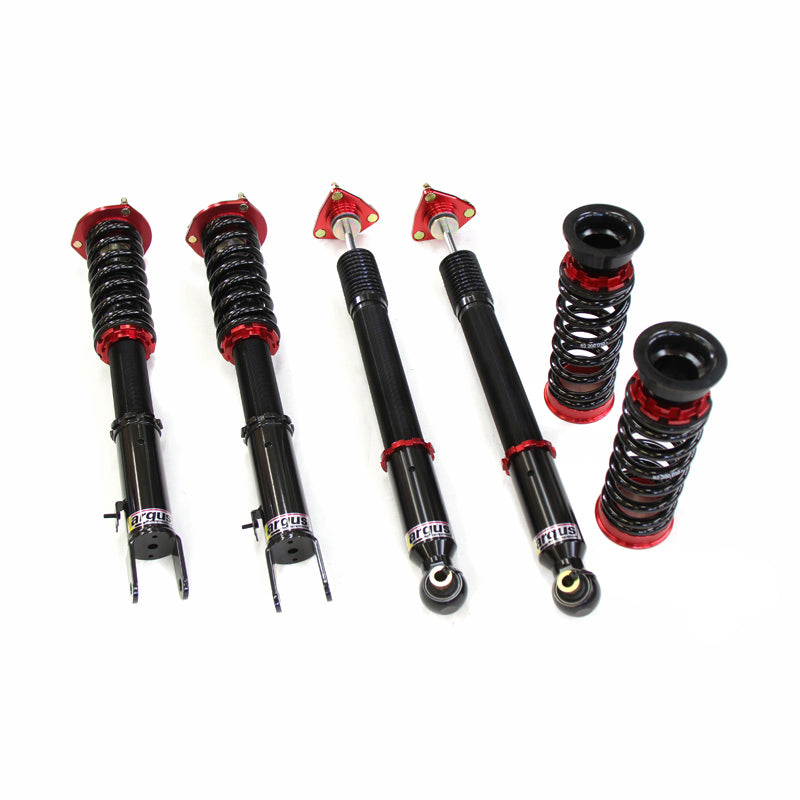

| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209116-QQ-3 |
| Compatible Car | TOYOTA CROWN ARS220 2WD |

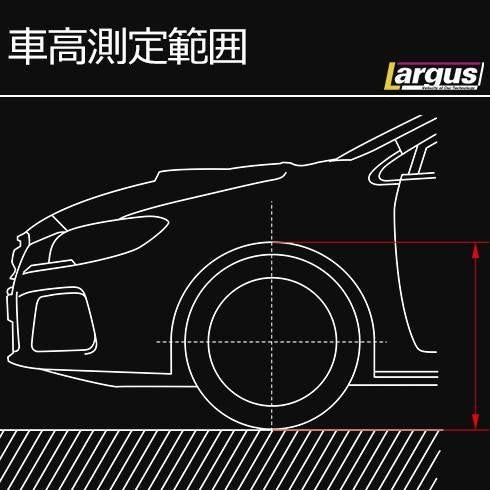

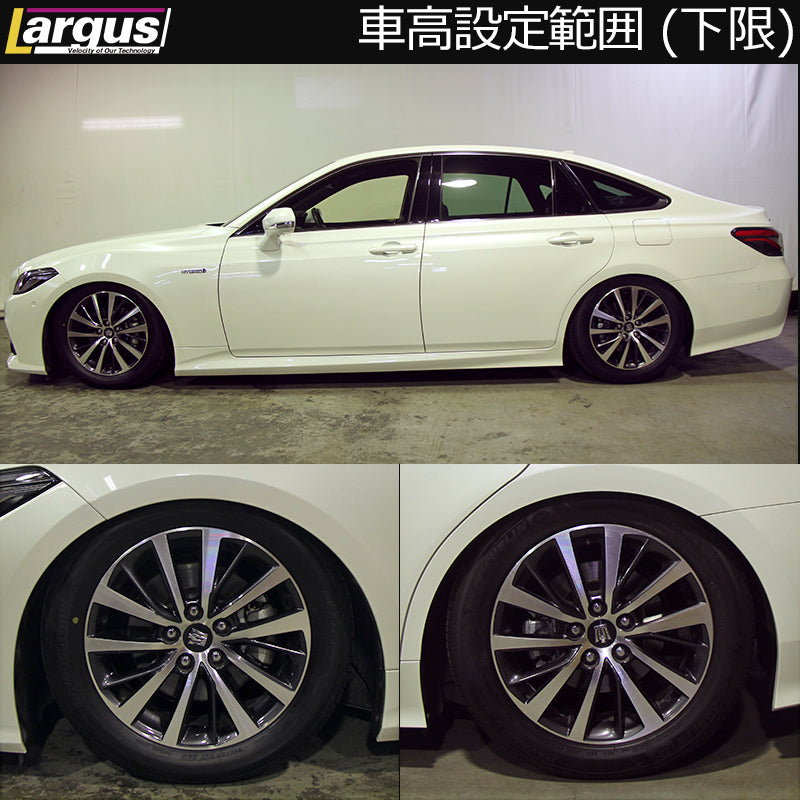

| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: TOYOTA Model: Crown Vehicle model: ARS220 Year: 2018/06~ Drive system: 2WD Spring rate (F): 9kg Spring rate (R): 10kg Free length (F): 220mm Free length (R): 200mm Upper mount (F): Fixed reinforced rubber Upper mount (R): Fixed reinforced rubber F damping position: Fixed with dial (upper upper mount) F damping position (R): Fixed with dial (upper upper mount) Vehicle height adjustment range (F): 616mm - 714mm Vehicle height adjustment range (R): 630mm - 689mm Lowering amount (F): -90mm to +8mm Down R: -64mm to -5mm |
| Remarks | For vehicles equipped with AVS, the warning light will come on and the AVS function will be disabled. To install the damping extension dial, interior modification or removal is required. The vehicle height adjustment range and lowering amount are based on AZSH20 data. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles equipped with adaptive shock absorbers (electronically controlled dampers, etc.), the warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
