¥116,406 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011210018-QQ-1150 |
| Compatible Car | MAZDA CX-5 KE2AW 4WD |

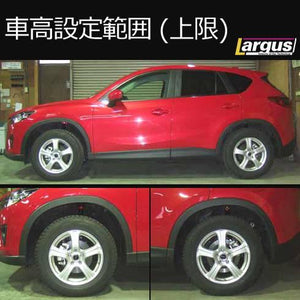

| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: MAZDA Model: CX-5 Vehicle model: KE2AW Year: - Drive system: 4WD Spring rate (Front): 6kg Spring rate (Rear): 6kg Free length (Front): 220mm Free length (Rear): 230mm Upper mount (Front): Fixed, reinforced rubber Upper mount (Rear): Fixed, reinforced rubber Damping position (Front): Dial-fixed (top of upper mount) Damping position (Rear): Disc-shaped (inside wheelhouse) Vehicle height adjustment range (Front): 700mm - 805mm Vehicle height adjustment range (Rear): 750mm - 787mm Lowering amount (Front): -95mm to +10mm Down R: -72mm to -35mm |
| Remarks | *Only compatible with round-eye rear shock brackets. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
