¥113,176 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011210019-QQ-1194 |
| Compatible Car | MAZDA ATENZA WAGON GJEFW 2WD |

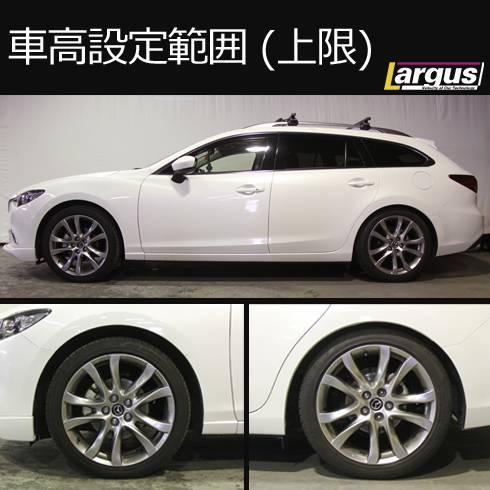

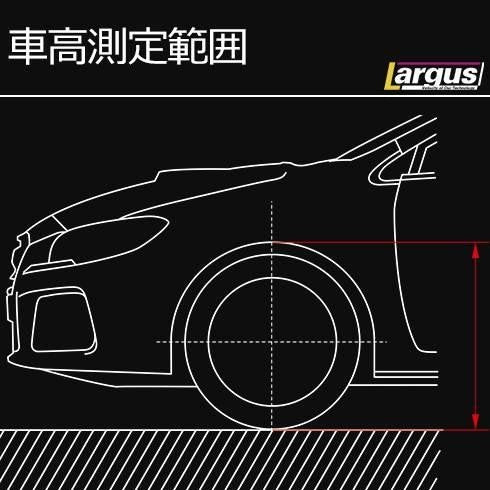

| Product Description | Car Manufacturer: Mazda Vehicle Model: Atenza Wagon Vehicle Model: GJEFW Year: 2012.11-2019.07 Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Spring Rate F: 7kg Spring Rate R: 4.3kg Free Length F: 200mm Free Length R: 230mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Fixed Reinforced Rubber F Damping Position: Dial Fixed (Top of Upper Mount) R Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 646mm-718mm Vehicle Height Adjustment Range R (Reference Value): 654mm to 699mm Downward adjustment F (reference value): -70mm to +2mm Downward adjustment R (reference value): -67mm to -22mm |
| Remarks | The vehicle height adjustment range and lowering amount are based on data for the GJ2FW. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
