¥113,176 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011210029-QQ-4 |
| Compatible Car | MAZDA MAZDA3 SEDAN BPFP 2WD |

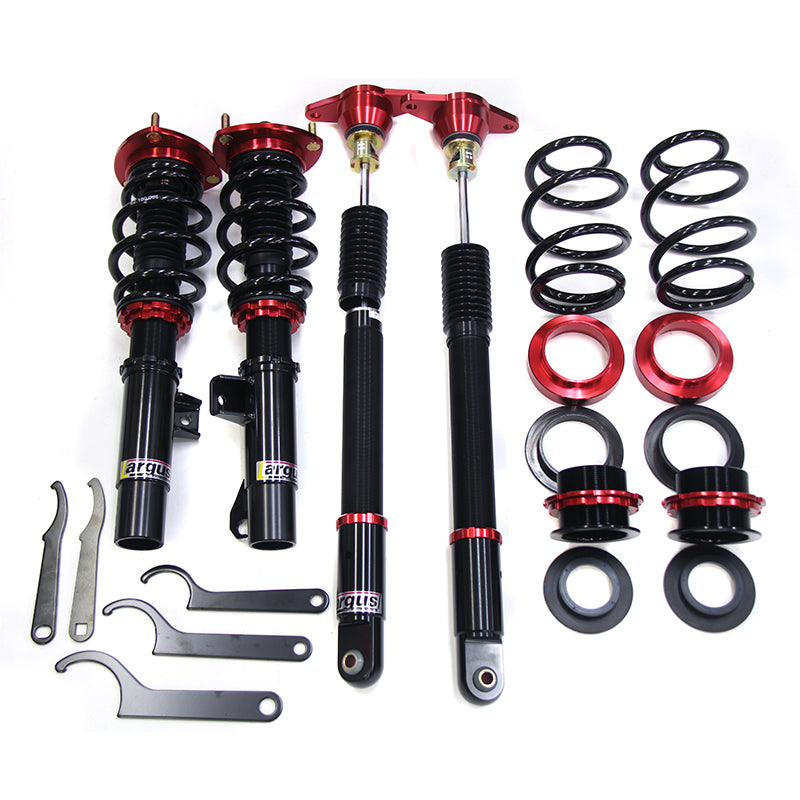

| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: MAZDA Vehicle: MAZDA3 Sedan Vehicle model: BPFP Year: 2019/05~ Drive system: 2WD Frequency: 6kg Rear: 5kg Free length: 180mm Free length: 180mm Front upper mount: Fixed reinforced rubber Rear upper mount: Fixed reinforced rubber Front damping position: Dial fixed (top of upper mount) Rear damping position: Disc type (inside wheelhouse) Front height adjustment range: 637mm - 690mm Rear height adjustment range: 650mm - 705mm Lowering amount: -48mm to +5mm Down R: -57mm to -2mm |

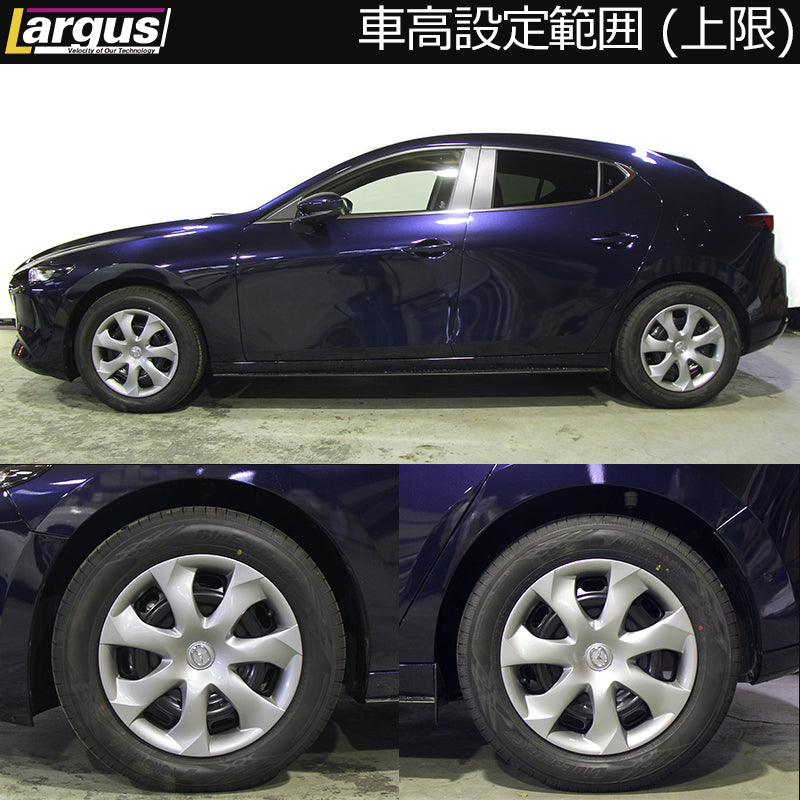

| Remarks | The vehicle height adjustment range and lowering amount are based on data for the BP5P (MAZDA3 Fastback). *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
