¥132,673 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011228001-QQ-1387 |
| Compatible Car | ABARTH 595 312141 2WD |

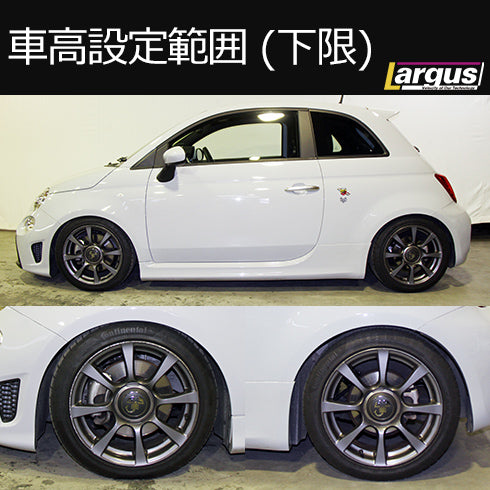

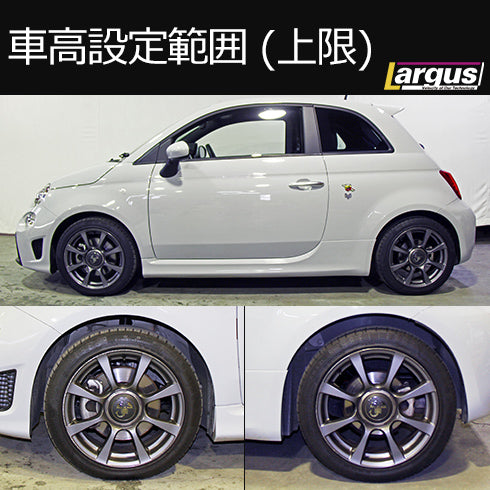

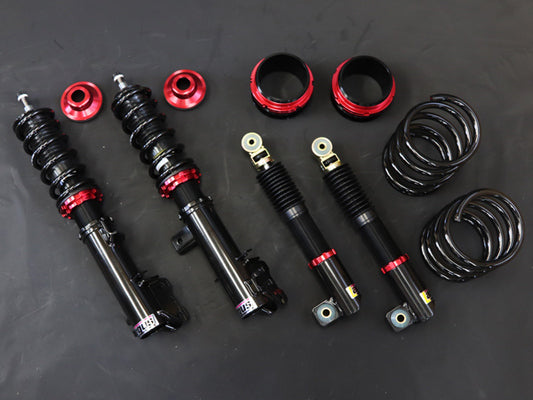

| Product Description | Car manufacturer: ABARTH Model: 595 Vehicle model: 312141 Year: 2013.01~ Drive system: 2WD Product: Full-length adjustable suspension kit SpecS Import Spring rate F: 5kg Spring rate R: 5kg Free length F: 180mm Free length R: 180mm Upper mount F: Mountless Upper mount R: Mountless Damping position F: Dial fixed (top of upper mount) Damping position R: Disc type (inside wheelhouse) Vehicle height adjustment range F (reference value): 566mm - 616mm Vehicle height adjustment range R (reference value): 594mm - 635mm Lowering amount F (reference value) : -52mm to -2mm Down amount R (reference value): -58mm to -17mm |
| Remarks | Adjustable pillow upper mounts are available as an option. SpecSI Ver.2 is also available with pre-installed adjustable pillow upper mounts. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
