¥132,673 JPY
| /
| Brand | LARGUS |

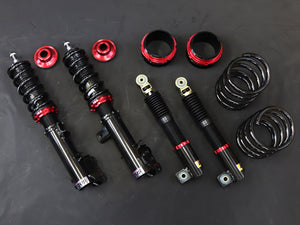

| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011228001-QQ-1390 |
| Compatible Car | ABARTH 500 312141 2WD |

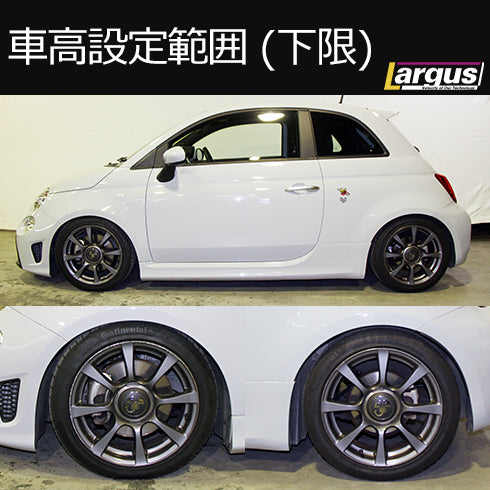

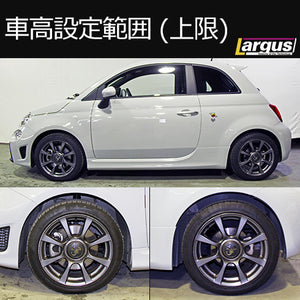

| Product Description | Car Manufacturer: ABARTH Model: 500 Vehicle Model: 312141 Year: 2009.04-2017.02 Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecS Import Spring Rate F: 5kg Spring Rate R: 5kg Free Length F: 180mm Free Length R: 180mm Upper Mount F: Mountless Upper Mount R: Mountless F Damping Position: Dial Fixed (Top of Upper Mount) F Damping Position R: Disc Type (Inside Wheelhouse) F Height Adjustment Range (Reference Value): 566mm-616mm F Height Adjustment Range R (Reference Value): 594mm to 635mm Down amount F (reference value): -52mm to -2mm Down amount R (reference value): -58mm to -17mm |
| Remarks | Adjustable pillow upper mounts are available as an option. SpecSI Ver.2 is also available with pre-installed adjustable pillow upper mounts. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
