¥132,673 JPY
| /

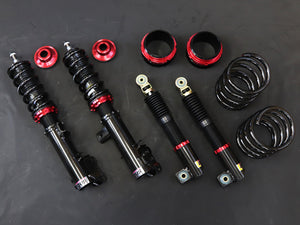

| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011228001-QQ-3 |
| Compatible Car | ABARTH 695 312142 2WD |

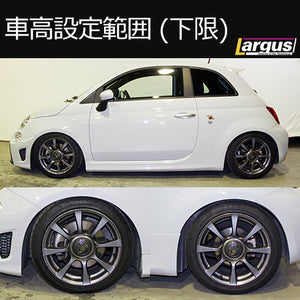

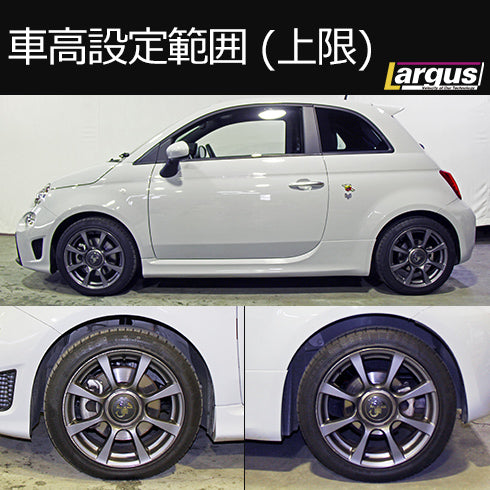

| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Import Manufacturer: ABARTH Model: 695 Vehicle model: 312142 Year: - Drive system: 2WD Spring rate (Front): 5kg Spring rate (Rear): 5kg Free length (Front): 180mm Free length (Rear): 180mm Upper mount (Front): Mountless Upper mount (Rear): Mountless Damping position (Front): Dial fixed (top of upper mount) Damping position (Rear): Disc type (inside wheelhouse) Adjustable range (Front): 566mm - 616mm Adjustable range (Rear): 594mm - 635mm Lowering amount (Front): -52mm to -2mm Down R: -58mm to -17mm |
| Remarks | The vehicle height adjustment range and lowering amount are based on the ABARTH 595 data. Adjustable pillow upper mounts are available as an option. SpecSI Ver.2 is also available with pre-installed adjustable pillow upper mounts. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. Individual vehicle differences and assembly conditions may result in discrepancies. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other solution will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
