¥164,515 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011228003-QQ-7 |
| Compatible Car | FIAT FIAT 500 31212 2WD |

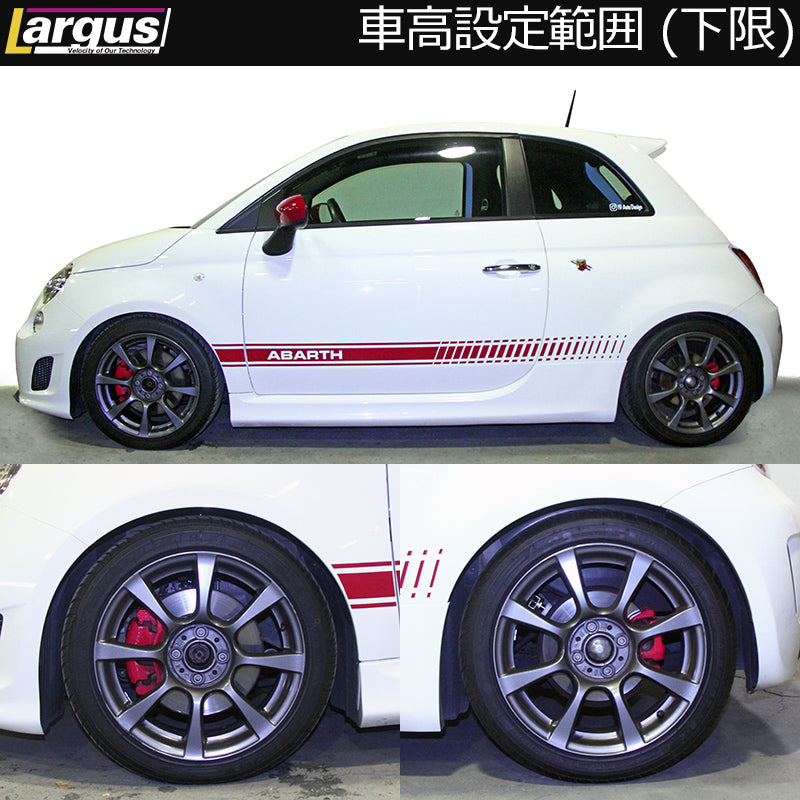

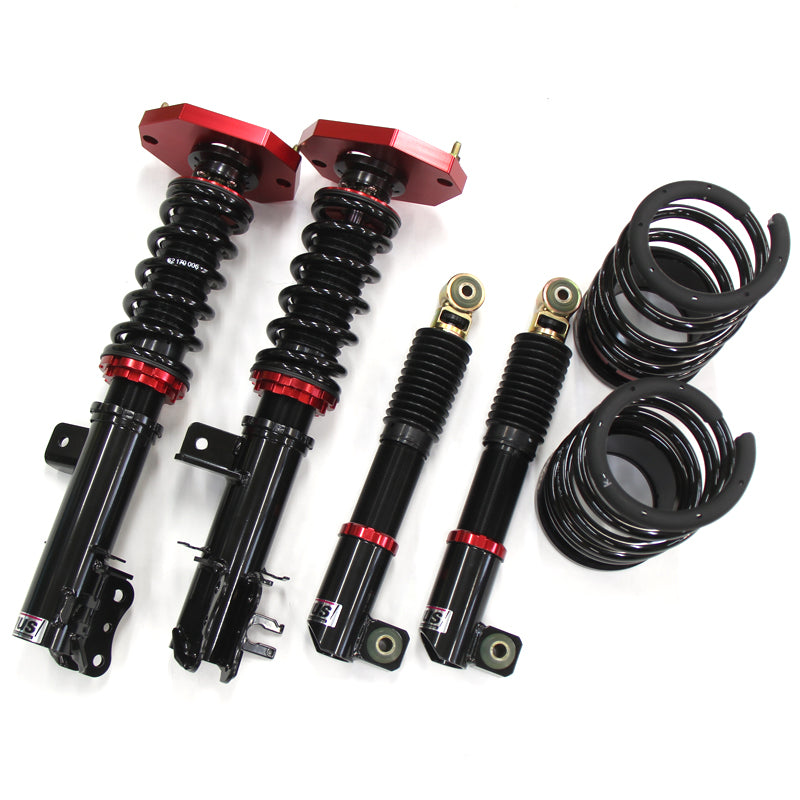

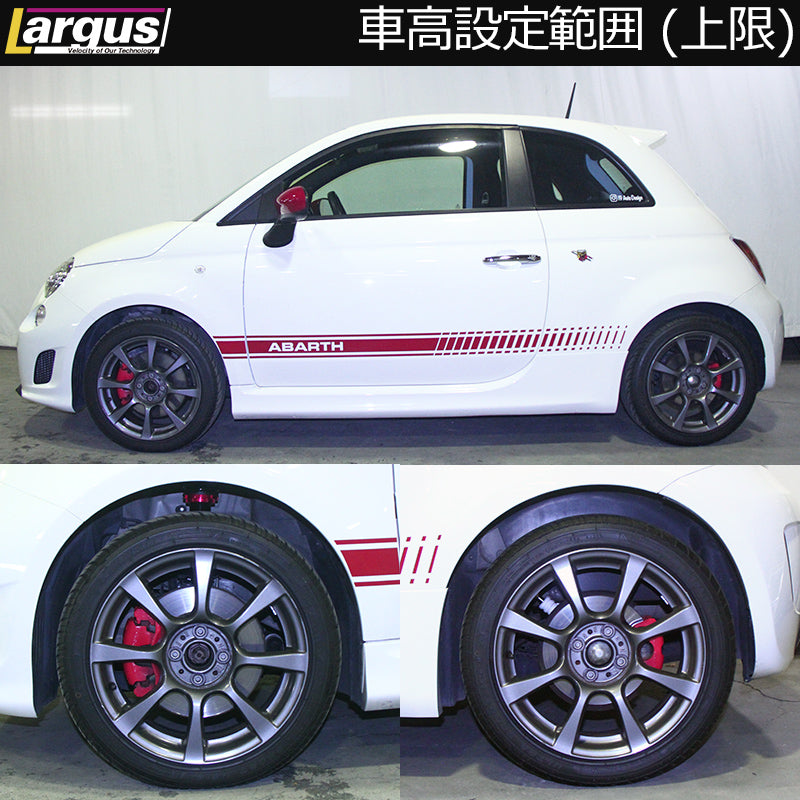

| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Import Ver.2 Manufacturer: FIAT Vehicle: FIAT 500 Model: 31212 Year: 2009/12~ Drive: 2WD Frequency: 5kg Rear: 5kg Free length: 170mm Free length: 180mm Front upper mount: Adjustable pillow Rear upper mount: Mountless Front damping position: Separate dial (top of upper mount) Rear damping position: Disc type (inside wheelhouse) Front height adjustment range: 582mm~624mm Rear height adjustment range: 601mm to 638mm F Lowering Amount: -32mm to +10mm R Lowering Amount: -52mm to -15mm |
| Remarks | The ride height adjustment range and lowering amount are based on the ABARTH500 (312141). The front upper mount is secured differently from the factory, and the body holes for the serration bolts use service holes (specific instructions included). Adjusting the camber angle requires removing the coilovers. Depending on the manufacturing period, some vehicles have the factory muffler with an integrated silencer and pipe, while others have separate pipes. Integrated mufflers may interfere with the coilover bracket. In the unlikely event of interference, modifications to the bracket and muffler will be required. Please refer to the images provided separately for muffler shape. *The ride height setting range, lowering amount, and installation images are for reference only, based on a development vehicle. Individual vehicle variations and assembly conditions may result in discrepancies. *For vehicles equipped with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will be activated, requiring a separate canceller or other appropriate countermeasure. *The specifications and accessories for this product are subject to change without notice for product improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
