¥155,747 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC D COILOVER KIT |
| Product Number | 01011309007-QQ-4 |
| Compatible Car | TOYOTA COROLLA TOURING ZWE214W 4WD |

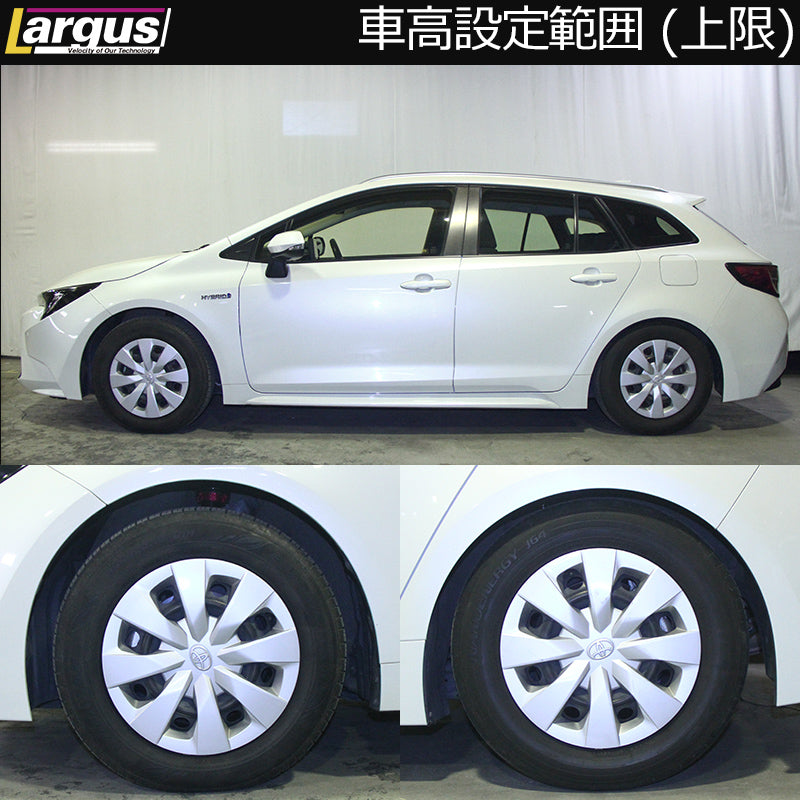

| Product Description | Product: Full-length adjustable suspension kit Type: SpecD Manufacturer: TOYOTA Model: Corolla Touring Vehicle model: ZWE214W Year: 2019/10~ Drive system: 4WD Frequency: 10kg Rear: 7kg Free length: 140mm Free length: 160mm Front upper mount: Adjustable pillow Rear upper mount: Mountless Front damping position: Fixed by dial (top of upper mount) Rear damping position: Disc type (inside wheel well) Front height adjustment range: 566mm - 661mm Rear height adjustment range: 557mm - 639mm Lowering amount: -96mm to -1mm Down R: -107mm to -25mm |
| Remarks | Adjusting the front damping dial and camber angle requires drilling holes in the steel panel above the upper mount, or disassembly or removal of the coilovers. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. Individual vehicle differences and assembly conditions may result in discrepancies. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other solution will be required. *The specifications and accessories of this product are subject to change without notice for product improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
