¥177,667 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC SR COILOVER KIT |
| Product Number | 01011408002-QQ-1 |
| Compatible Car | SUZUKI ALTO WORKS HA36S 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecSR Manufacturer: SUZUKI Model: Alto Works Vehicle model: HA36S Year: - Drive system: 2WD Frequency: 8kg Rear: 6kg Free length: Fr: 160mm Free length: Rr: 100mm Front upper mount: Fixed pillow Rear upper mount: Mountless Front damping position: Separate dial (lower upper mount) Rear damping position: Separate dial (upper upper mount) Front height adjustment range: 555mm - 590mm Rear height adjustment range: 569mm - 602mm Lowering amount: -73mm to -38mm Downward R: -62mm to -29mm |

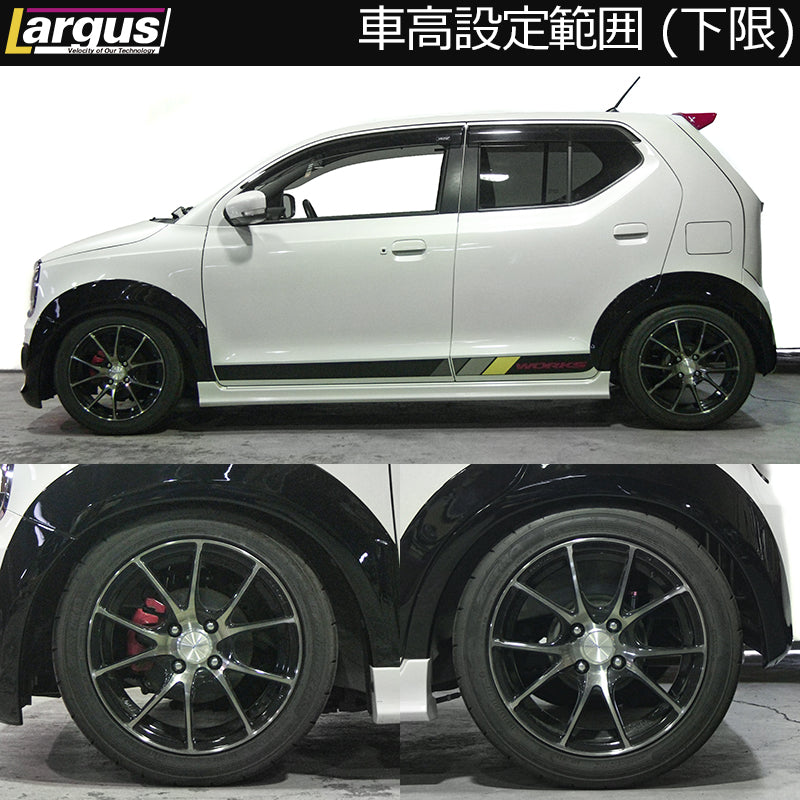

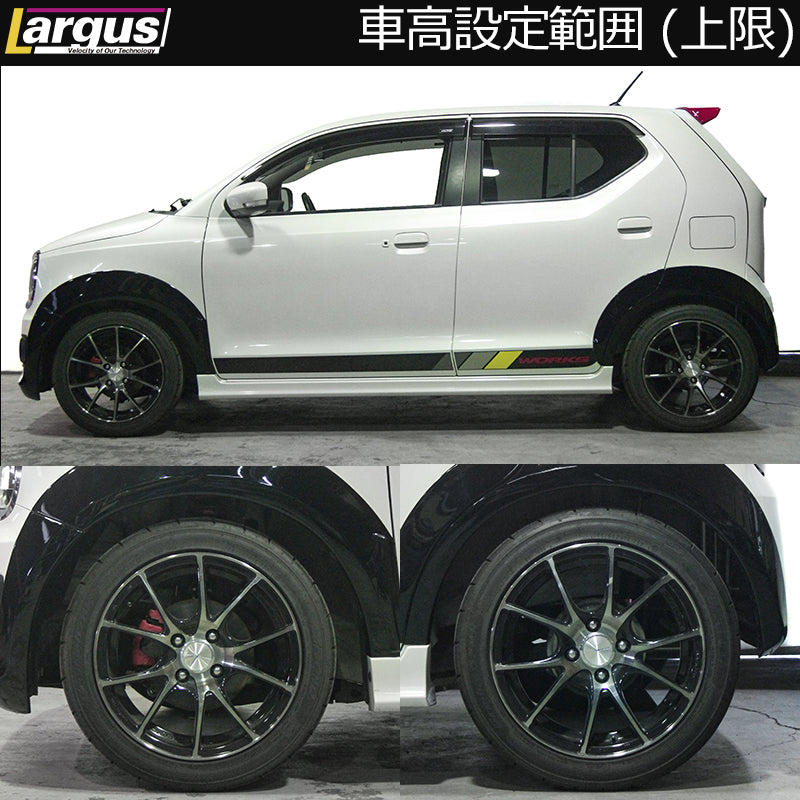

| Remarks | *Depending on the vehicle height and camber angle, the ABS stays and brake hose stays on the lower bracket may interfere with the body when turning the steering wheel. If interference occurs, please adjust them or modify the lower bracket stays. *We recommend using the original stabilizer links. If you would like to change the springs, please enter the desired spring type (RS or SS), free length, and rate for both the front and rear in the comments section. If no information is provided, the recommended specifications will be delivered. 24-stage adjustable front and rear damping, inverted front damping. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. Individual vehicle variations and assembly conditions may result in discrepancies. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will be activated, so a separate canceller or other solution may be required. *The specifications and accessories of this product are subject to change without notice for product improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
