¥143,864 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC K COILOVER KIT |
| Product Number | 01015101004-QQ-1225 |
| Compatible Car | DAIHATSU WAKE LA700S 2WD |

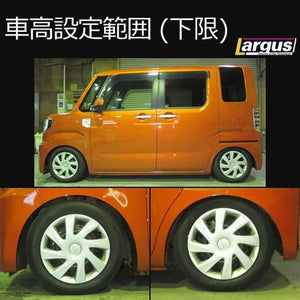

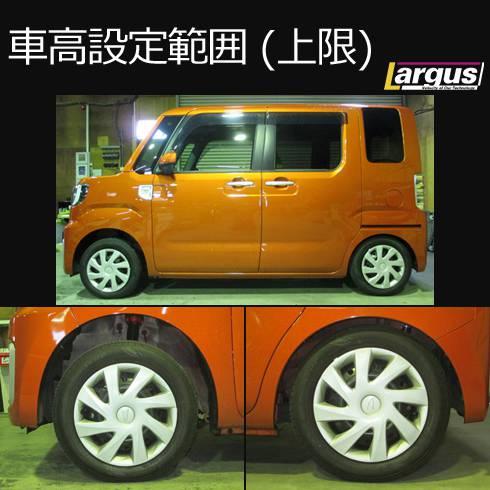

| Product Description | Car Manufacturer: Daihatsu Model: Wake Vehicle Model: LA700S Year: - Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecK Spring Rate F: 6kg Spring Rate R: 3.4kg Free Length F: 150mm Free Length R: 210mm Upper Mount F: Adjustable Pillow Upper Mount R: Mountless Damping Position F: Fixed by Dial (Upper Mount) Damping Position R: Fixed by Dial (Upper Mount) Vehicle Height Adjustment Range F (Reference Value): 532mm - 637mm Vehicle Height Adjustment Range R (Reference Value): 530mm - 585mm Lowering Amount F (Reference Value): -90mm to +15mm Down amount R (reference value): -81mm to -26mm |
| Remarks | through-type lower bracket is available as an option. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product may be changed without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
