¥125,636 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC K COILOVER KIT |
| Product Number | 01015101006-QQ-4 |
| Compatible Car | DAIHATSU MOVE L152S 2WD |

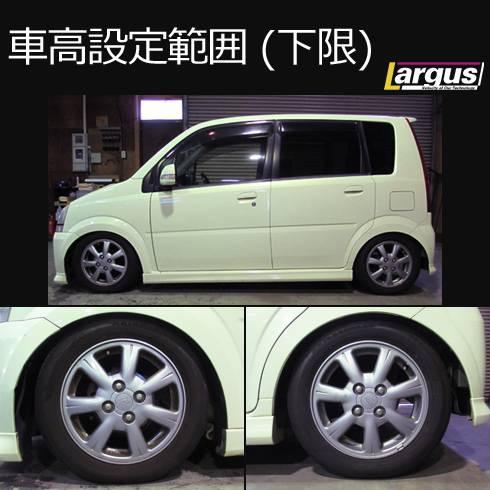

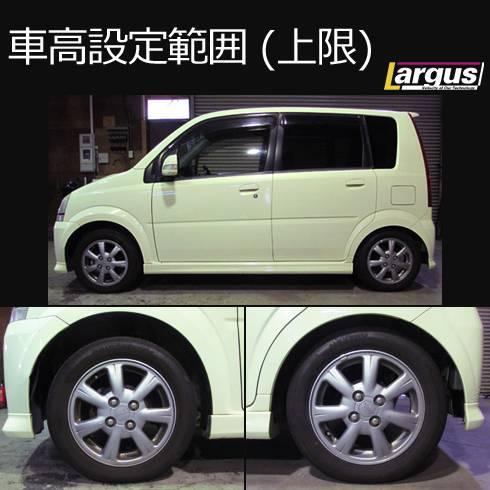

| Product Description | Car Manufacturer: Daihatsu Vehicle Model: Move Vehicle Model: L152S Year: - Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecK Spring Rate F: 4kg Spring Rate R: 3kg Free Length F: 180mm Free Length R: 225mm Upper Mount F: Adjustable Pillow Upper Mount R: Mountless Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Bracket Side (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 523mm - 625mm Vehicle Height Adjustment Range R (Reference Value): 544mm - 571mm Lowering Amount F (Reference Value): -102mm to ±0mm Down amount R (reference value): -56mm to -29mm |
| Remarks | The vehicle height adjustment range and lowering amount are based on data for the L150S (Move) 2WD. A through-type lower bracket is available as an option. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
