¥113,753 JPY
| /
| Brand | LARGUS |

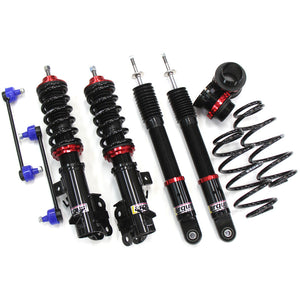

| Series Name | SPEC K COILOVER KIT |
| Product Number | 01015107003-QQ-5 |
| Compatible Car | MITSUBISHI EK CROSS B35W 2WD |

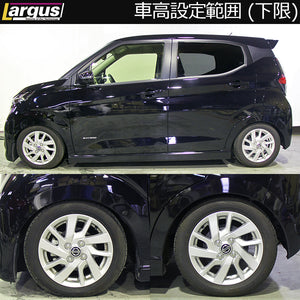

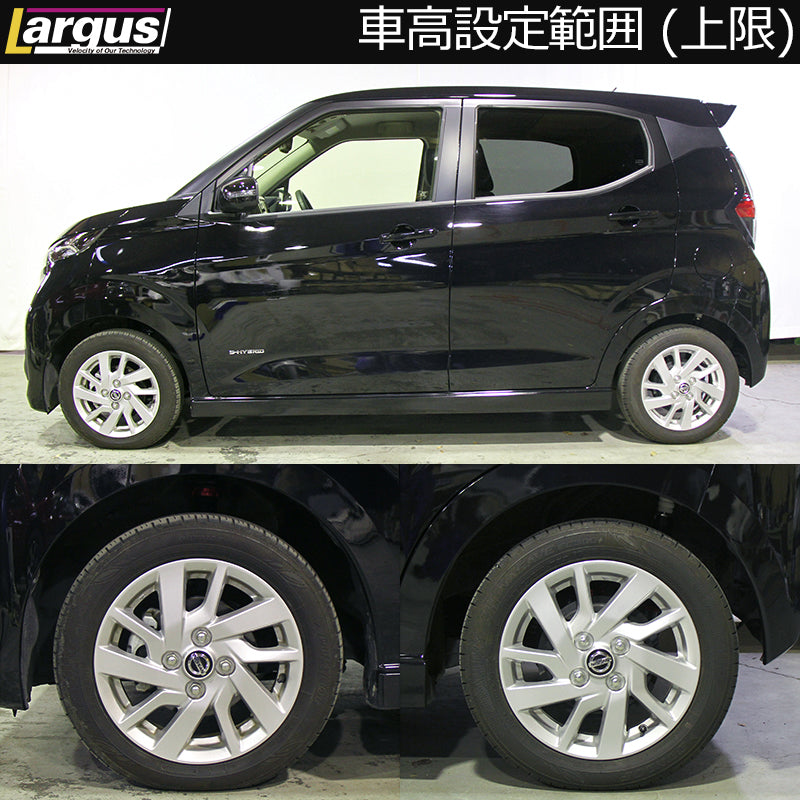

| Product Description | Car Manufacturer: Mitsubishi Vehicle Model: ek Cross Vehicle Model: B35W Year: 2019/03~ Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecK Spring Rate F: 5kg Spring Rate R: 2.3kg Free Length F: 170mm Free Length R: 210mm Upper Mount F: Mountless Upper Mount R: Mountless Damping Position F: Fixed by Dial (Upper Mount) Damping Position R: Fixed by Dial (Upper Mount) Vehicle Height Adjustment Range F (Reference Value): 525mm - 595mm Vehicle Height Adjustment Range R (Reference Value): 553mm - 606mm Lowering Amount F (Reference Value): -67mm to +3mm Down amount R (reference value): -54mm to -1mm |
| Remarks | The vehicle height adjustment range and lowering amount are based on data for the B44W (Dayz). *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
