¥119,060 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC K COILOVER KIT |
| Product Number | 01015108008-QQ-1249 |
| Compatible Car | SUZUKI ALTO WORKS HA36S 4WD |

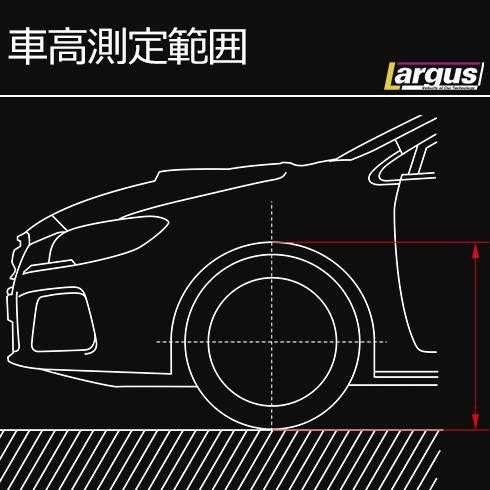

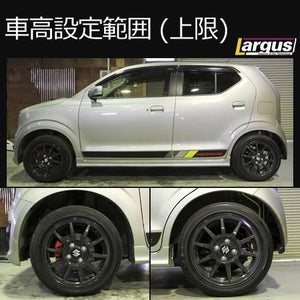

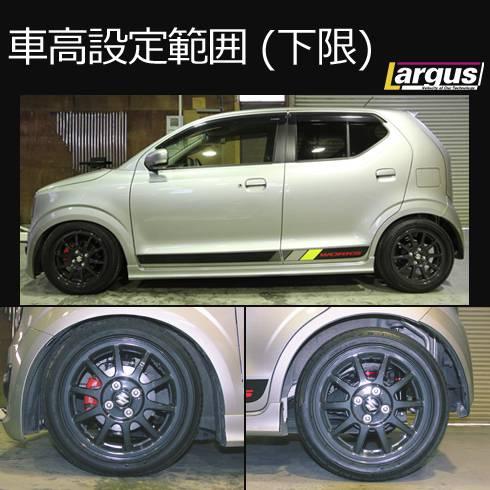

| Product Description | Car Manufacturer: Suzuki Vehicle Model: Alto Works Vehicle Model: HA36S Year: - Drive System: 4WD Product: Full-Length Adjustable Suspension Kit SpecK Spring Rate F: 4kg Spring Rate R: 2.5kg Free Length F: 150mm Free Length R: 120mm Upper Mount F: Mountless Upper Mount R: Mountless Damping Position F: Fixed by Dial (Upper Mount) Damping Position R: Fixed by Dial (Upper Mount) Vehicle Height Adjustment Range F (Reference Value): 563mm - 631mm Vehicle Height Adjustment Range R (Reference Value): 582mm - 610mm Lowering Amount F (Reference Value): -61mm to +7mm Down amount R (reference value): -55mm to -27mm |
| Remarks | through-type lower bracket is available as an option. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product may be changed without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
