¥130,966 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC K SUSPENSION KIT LIFT-UP MODEL |
| Product Number | 01015108010-QQ |
| Compatible Car | SUZUKI JIMNY JB64W 4WD |

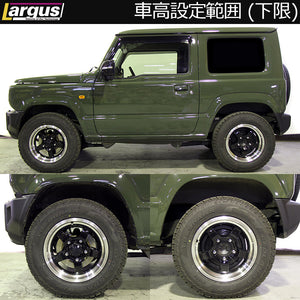

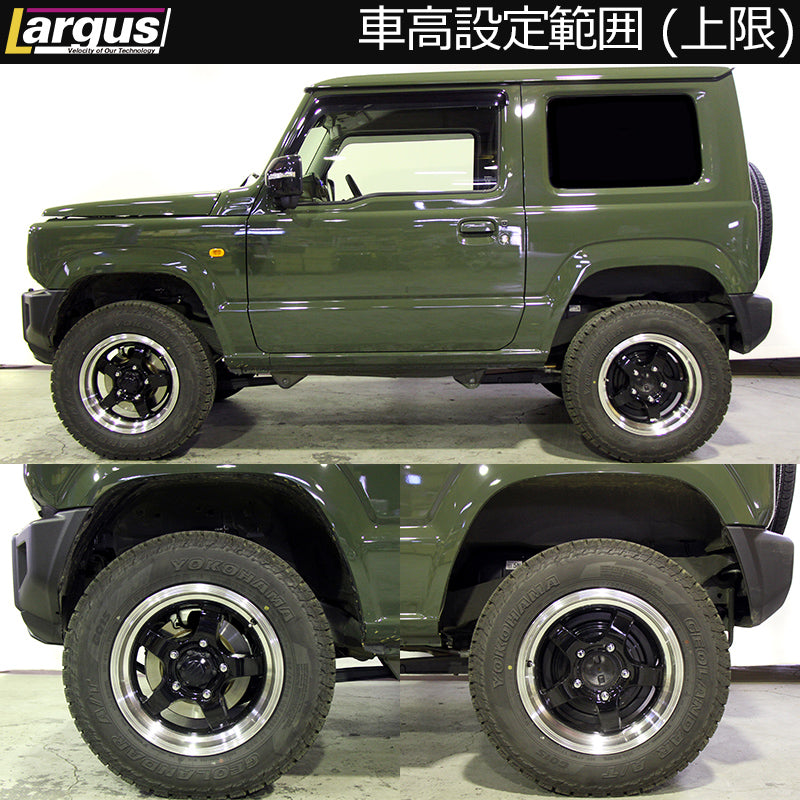

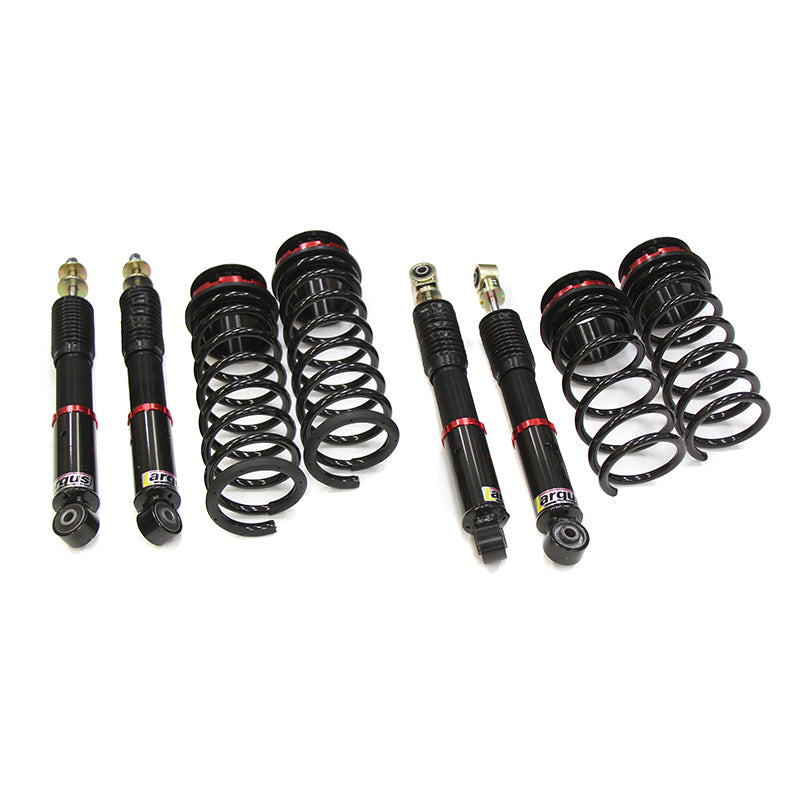

| Product Description | Car Manufacturer: Suzuki Model: Jimny Vehicle Model: JB64W Year: 2018/07~ Drive System: 4WD Product: Full-Length Adjustable Suspension Kit SpecK Lift-Up Model Spring Rate F: 2.3kg Spring Rate R: 3kg Free Length F: 300mm Free Length R: L240mm/R255mm Upper Mount F: Mountless Upper Mount R: Mountless Damping Position F: Dial Fixed (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): - Vehicle Height Adjustment Range R (Reference Value): - Lowering Amount F (Reference Value): +27mm to +63mm Down amount R (reference value): +22mm to +72mm |
| Remarks | This is a lift-up specification that raises the vehicle height above the factory setting. The recommended vehicle height is [F +35mm / R +25mm]. Even if the vehicle height is within the range, raising it above the recommended value will require various part replacements, adjustments, and modifications to avoid interference with the vehicle body, as well as brake line extensions. Therefore, please purchase the brake line set. To use the coilovers within the recommended height, please purchase the coilovers separately. The brake lines included with the brake line set are 70mm longer than the factory setting. *Brake lines are also sold separately. *The vehicle height setting range, lowering amount, and installation images are for reference only, based on a development vehicle. Individual vehicle and assembly conditions may result in discrepancies. *For vehicles equipped with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will be activated, so a separate canceller or other suitable solution may be required. *The specifications and accessories of this product are subject to change without notice for product improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
